VR4000
VIBRATORY RIPPER

BRON VR4000








BRON VR4000

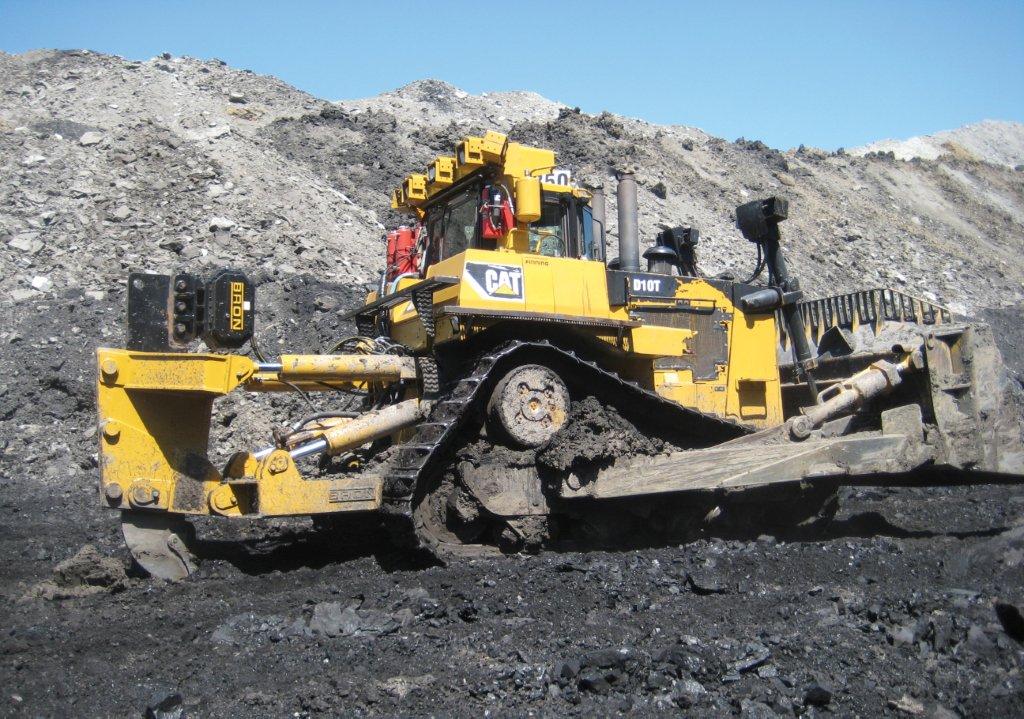

Built for dozers up to 1,200 HP, the BRON 4000 Vibratory Ripper is designed to work in applications with compacted soil, shale, limestone rock and coal. The BRON 4000 serves multiple industries, including mining, road construction and utility.

Contact Us
Approximate Weight 21,500 lbs (9752 kg)
Maximum Working Depth 48" (1288 mm)
Raised Tooth Ground Clearance 20" (512 mm)
Height of Mounted Ripper From Top of Shank to Ground (Both Cylinders Fully Retracted) 151" (3849 mm)
Width of Ripper Assembly  70" (1778 mm)
Height of Ripper Assembly 129" (3281 mm)
Length of Ripper Assembly 151" (3845 mm)
