V75-3
ADD-ON UTILITY PLOW

BRON V75-3


4,200 lbs

60" DEPTH







BRON V75-3

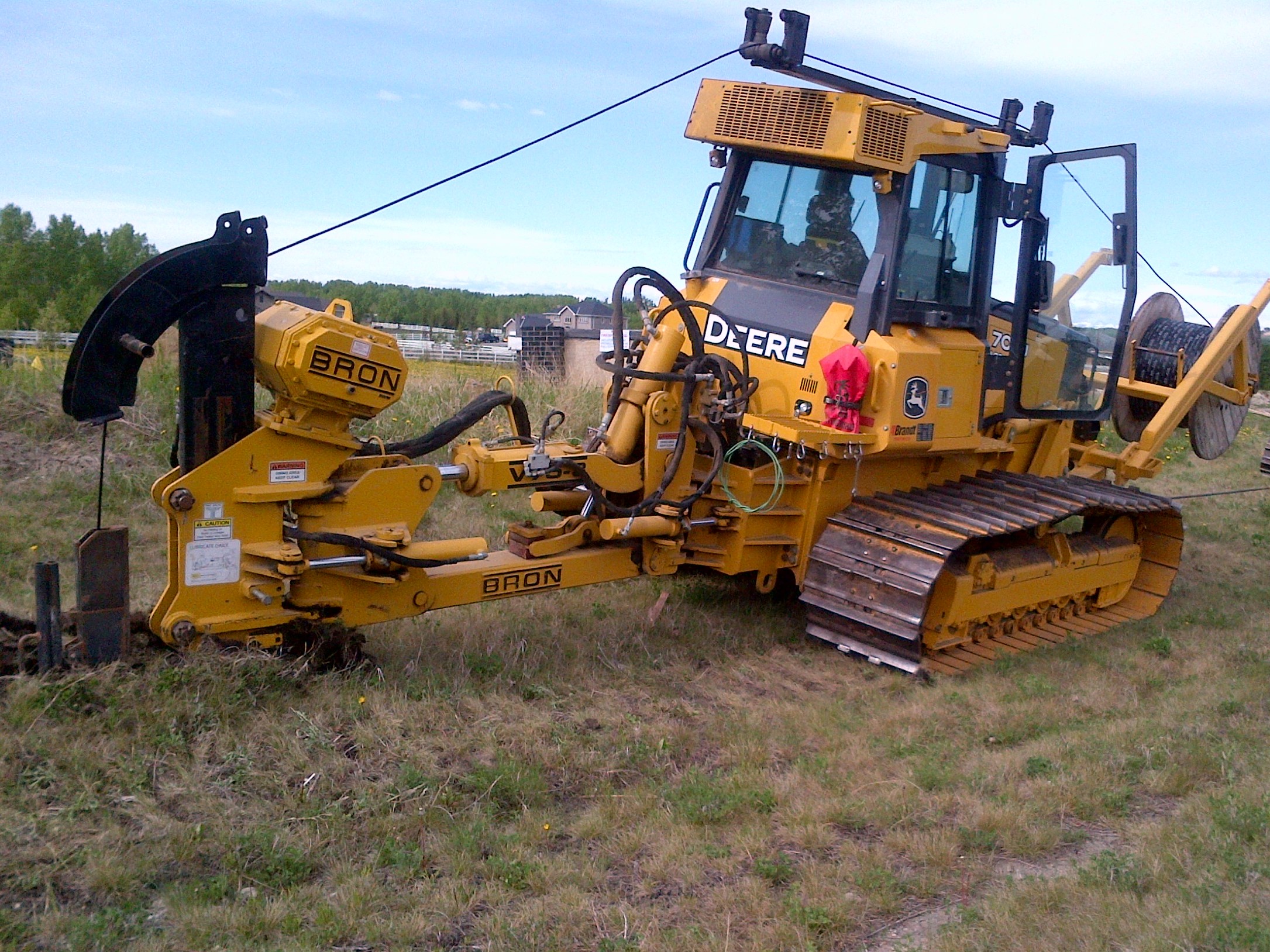

BRON Offsetting Add-On Vibratory Utility Plows are designed for the installation of fibre optics, copper cable, conduit and pipe at working depths up to 72". Vibratory Plows are ideal for installations in all conditions or when tractor power is limited due to challenging conditions.

Contact Us
Operating Weight 4,200 lbs (1905 kg)
Length of Plow Assembly (without chute) 112" (2,844 mm)
Maximum Depth 60" (1,524 mm)
Offset Range Left & Right of Center 51" (1,295 mm)
Approximate Blade Clearance @ Transport Position 20" (508 mm) Fully Retracted
Recommended Tractor Horse Power 115 HP-150 HP (37kW-66kW)
Total Hydraulic Pump Flow Required 40 US gpm

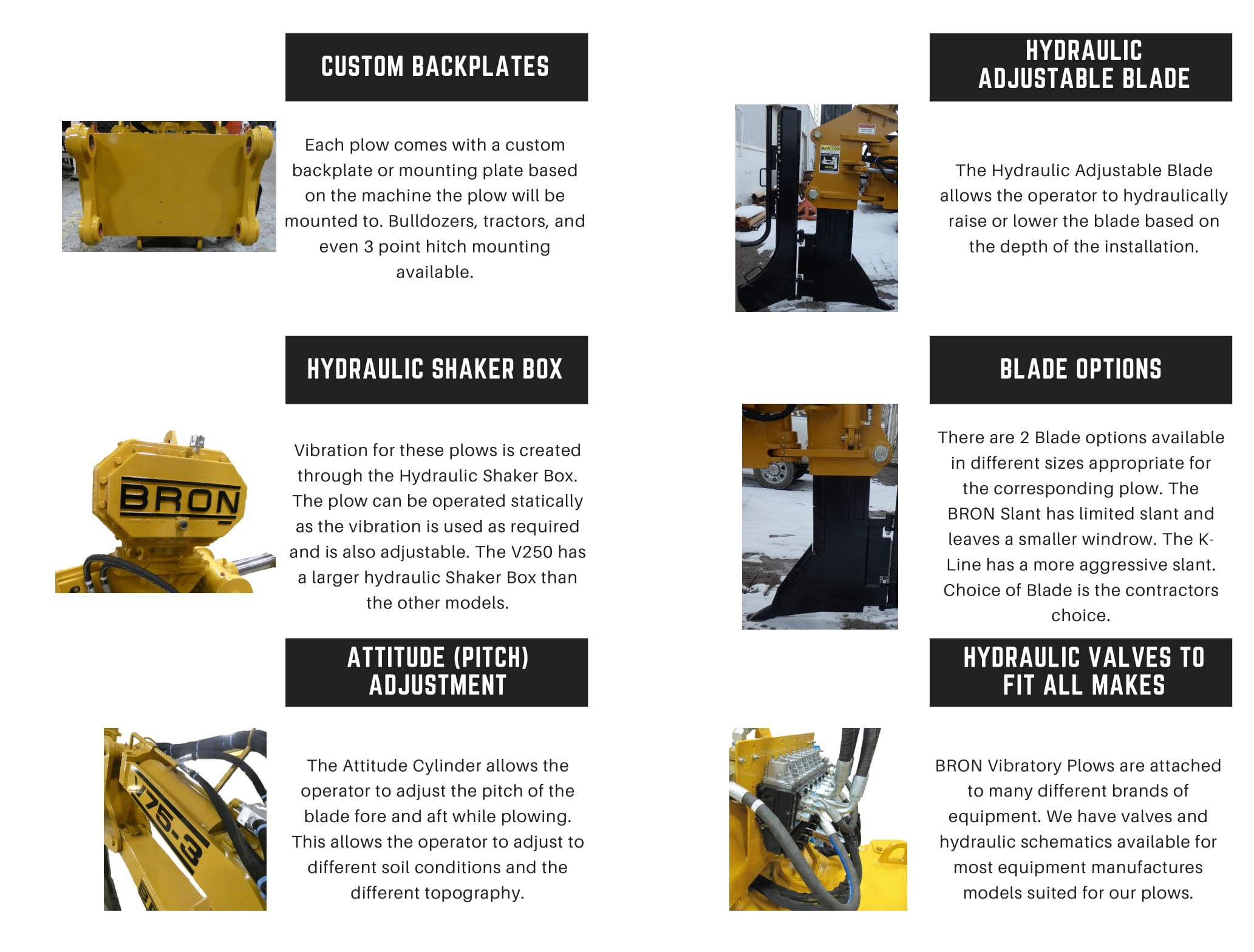

features

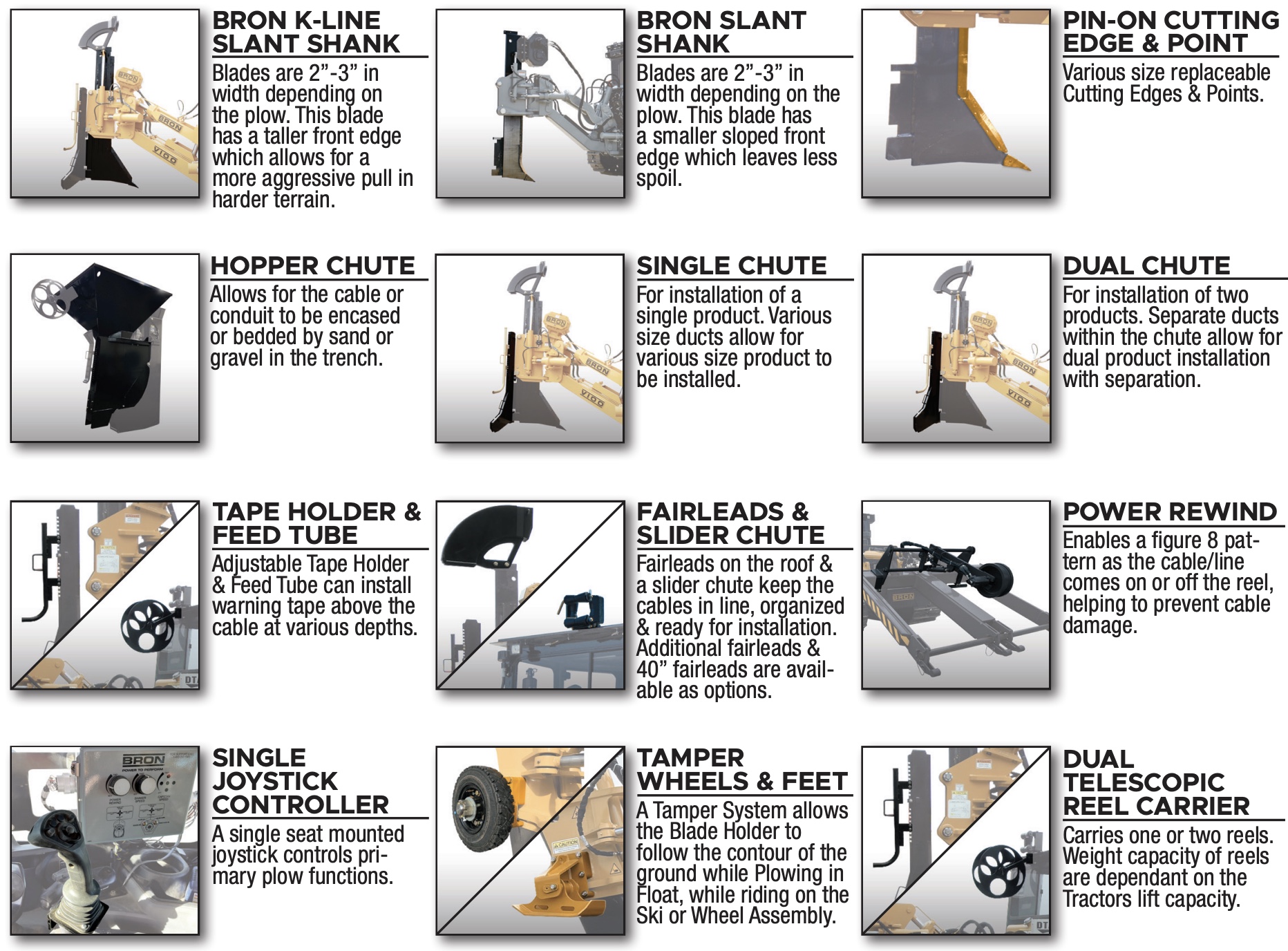

options
