V75-1
ADD-ON UTILITY PLOW

BRON V75-1


3,200 lbs

42" DEPTH



BRON V75-1

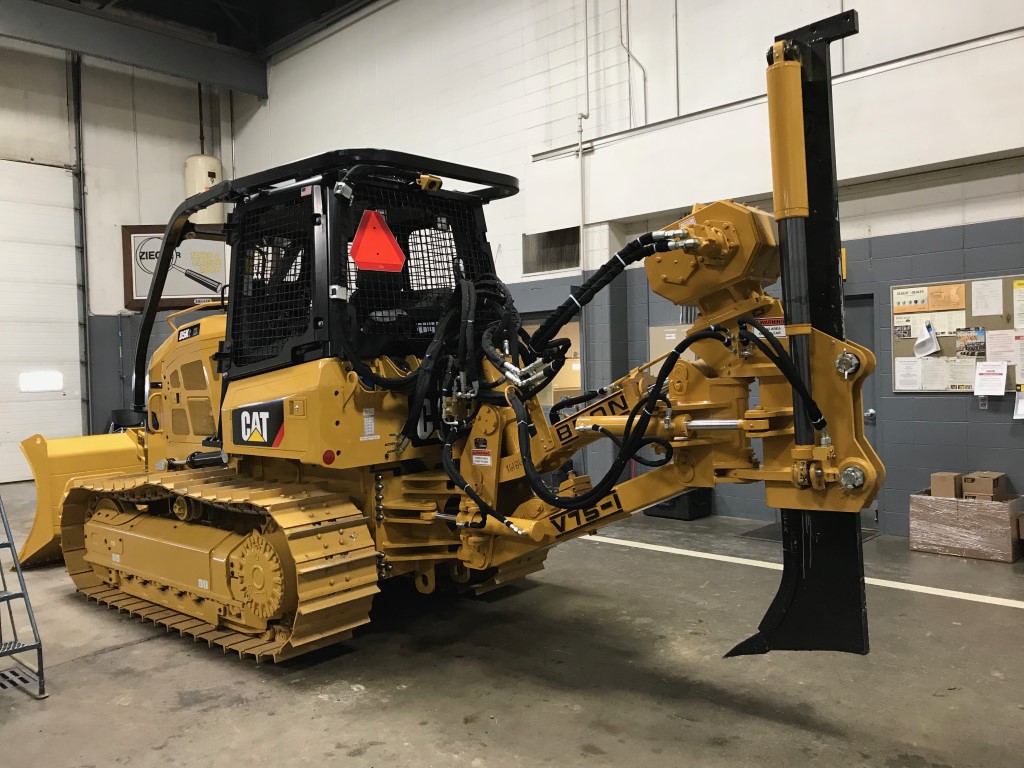

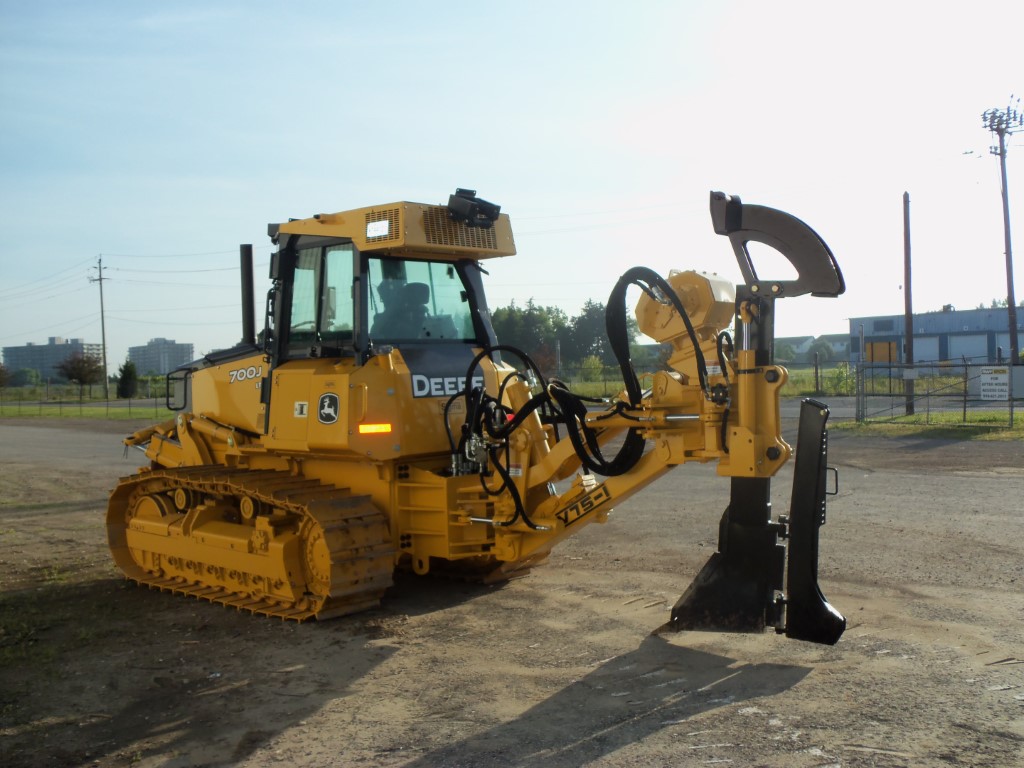

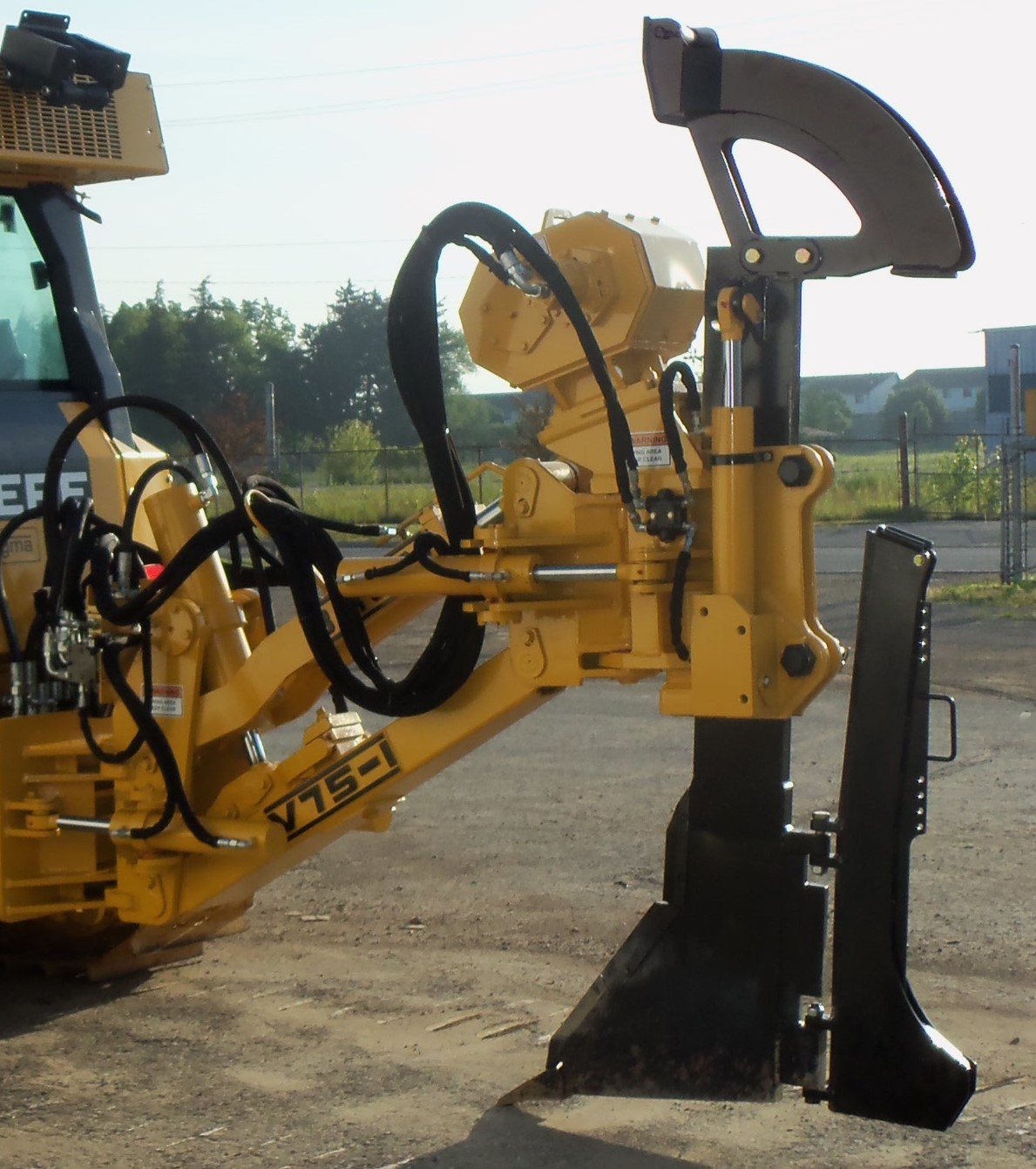

BRON Offsetting Add-On Vibratory Utility Plows are designed for the installation of fibre optics, copper cable, conduit and pipe at working depths up to 72". Vibratory Plows are ideal for installations in all conditions or when tractor power is limited due to challenging conditions.

Contact Us
Operating Weight 3,200 lbs (1,451 kg)
Length of Plow Assembly (without chute) 108" (2,743 mm)
Maximum Depth 42" (1,066 mm)
Offset Range Left & Right of Center 48" (1,129 mm)
Approximate Blade Clearance @ Transport Position 18" (457 mm) Fully Retracted
Recommended Tractor Horse Power 75 HP-130 HP (55kW-95kW)
Total Hydraulic Pump Flow Required 40 US gpm

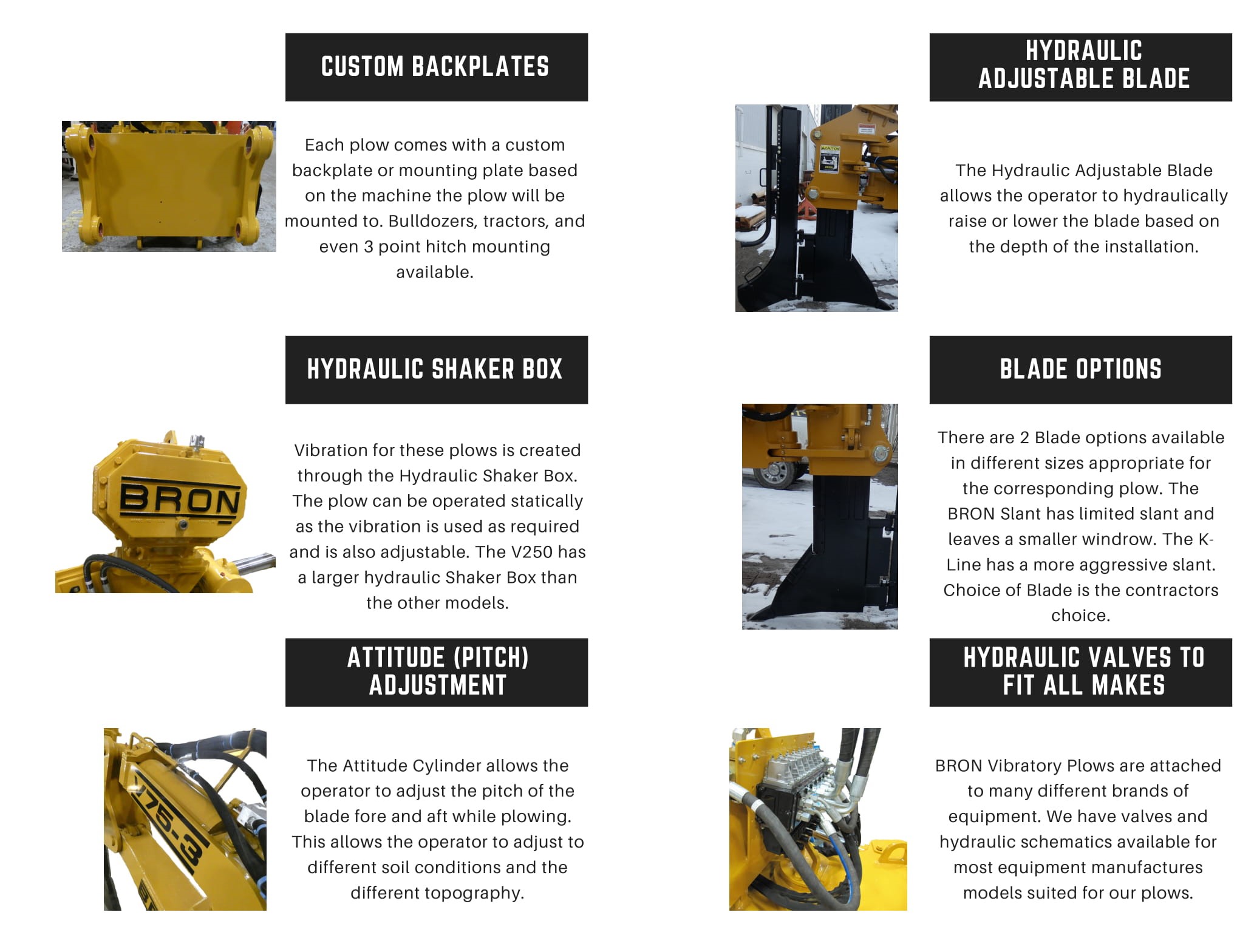

features

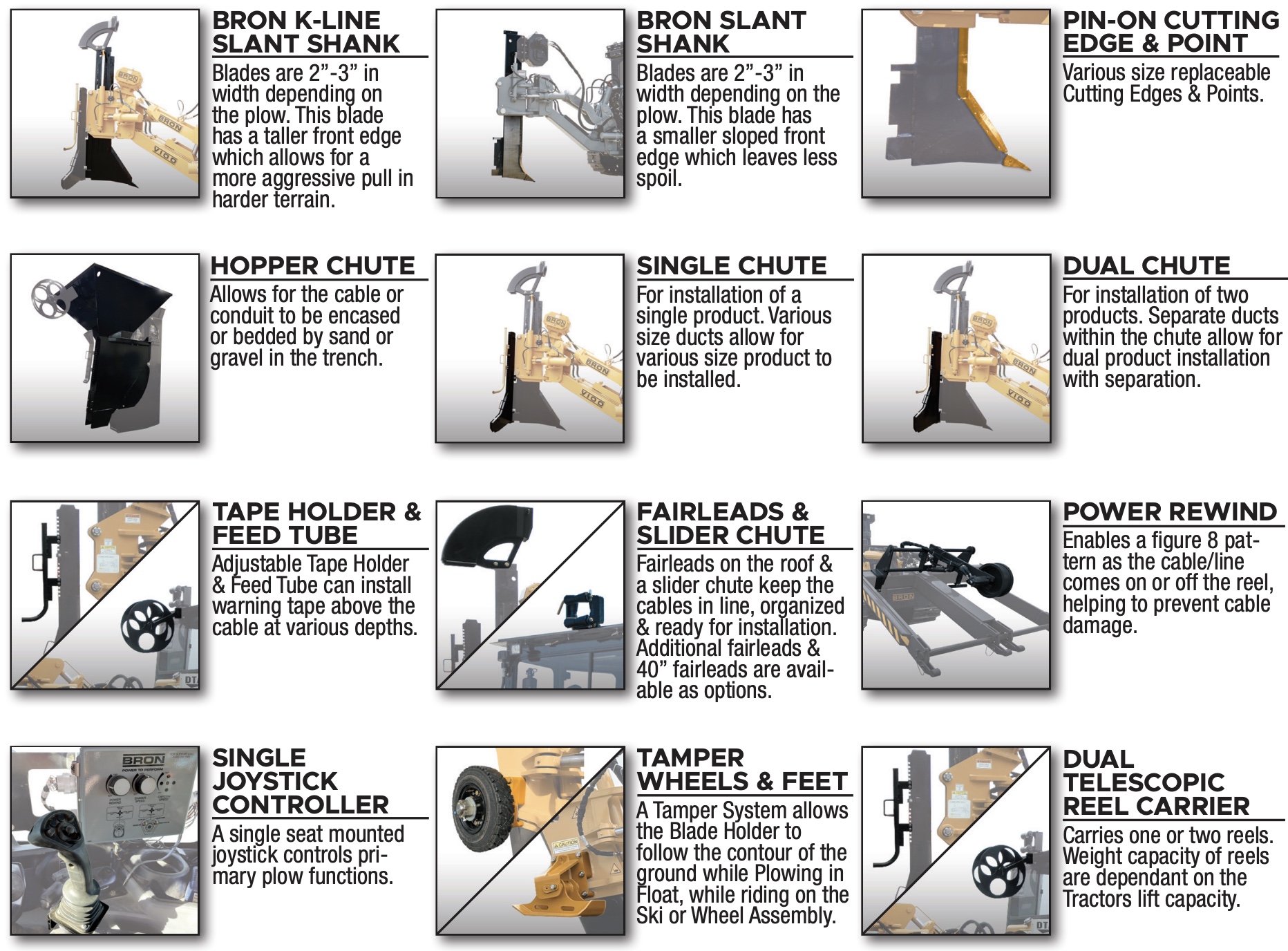

options

  • V75-1
  • V75-1
