v65-1
ADD-ON UTILITY PLOW

BRON V65-1


2,100 lbs

42" DEPTH







BRON V65-1

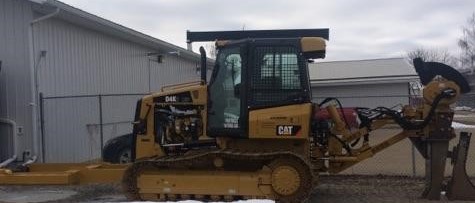

BRON Offsetting Add-On Vibratory Utility Plows are designed for the installation of fibre optics, copper cable, conduit and pipe at working depths up to 72". Vibratory Plows are ideal for installations in all conditions or when tractor power is limited due to challenging conditions.

Contact Us
Operating Weight 2,100 lbs (952 kg)
Length of Plow Assembly (without chute) 108" (2,743 mm)
Maximum Depth 42" (1,066 mm)
Offset Range Left & Right of Center 42" (1,066 mm)
Approximate Blade Clearance @ Transport Position 18" (457 mm) Fully Retracted
Recommended Tractor Horse Power 50 HP-90 HP (37kW-66kW)
Total Hydraulic Pump Flow Required 40 US gpm

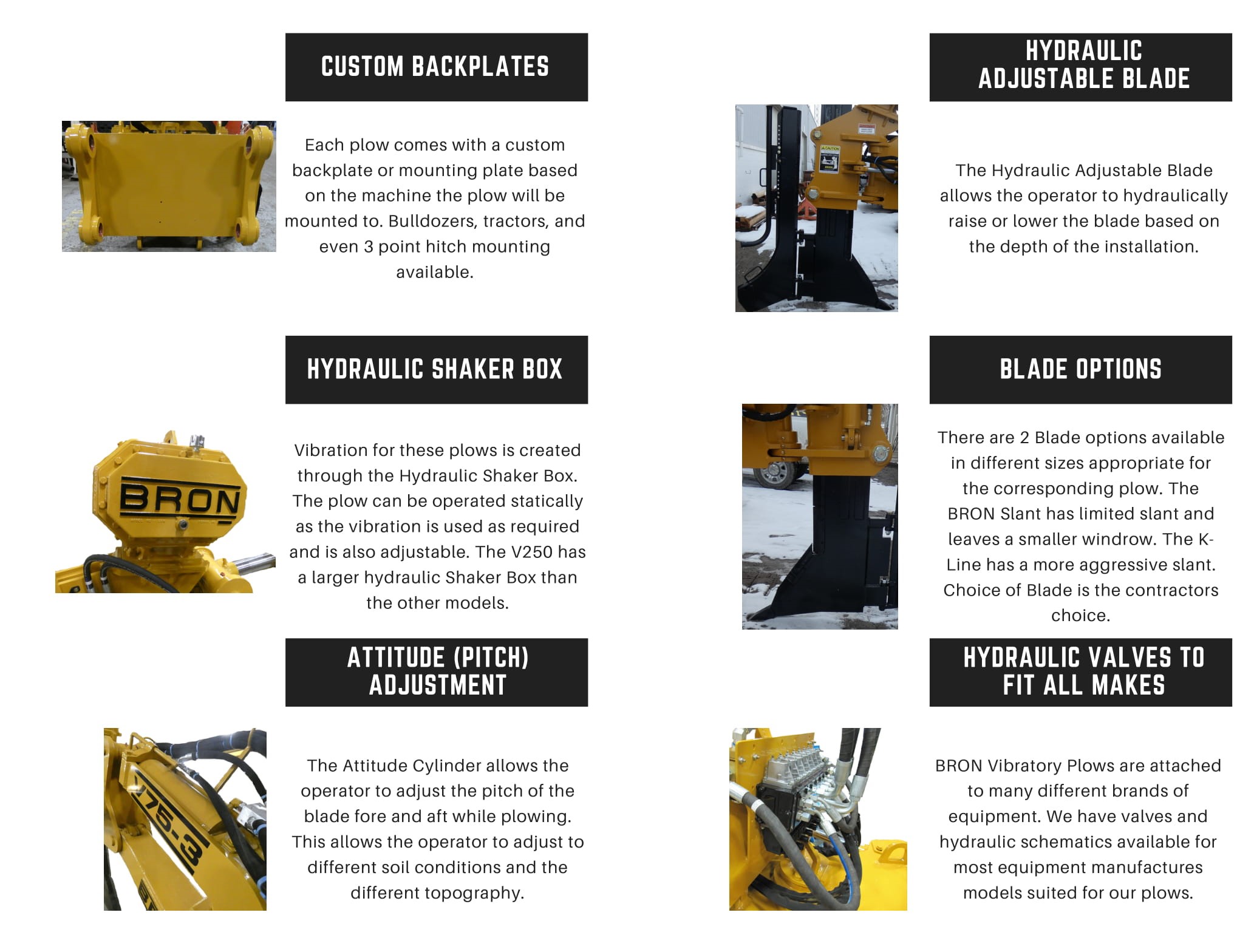

features

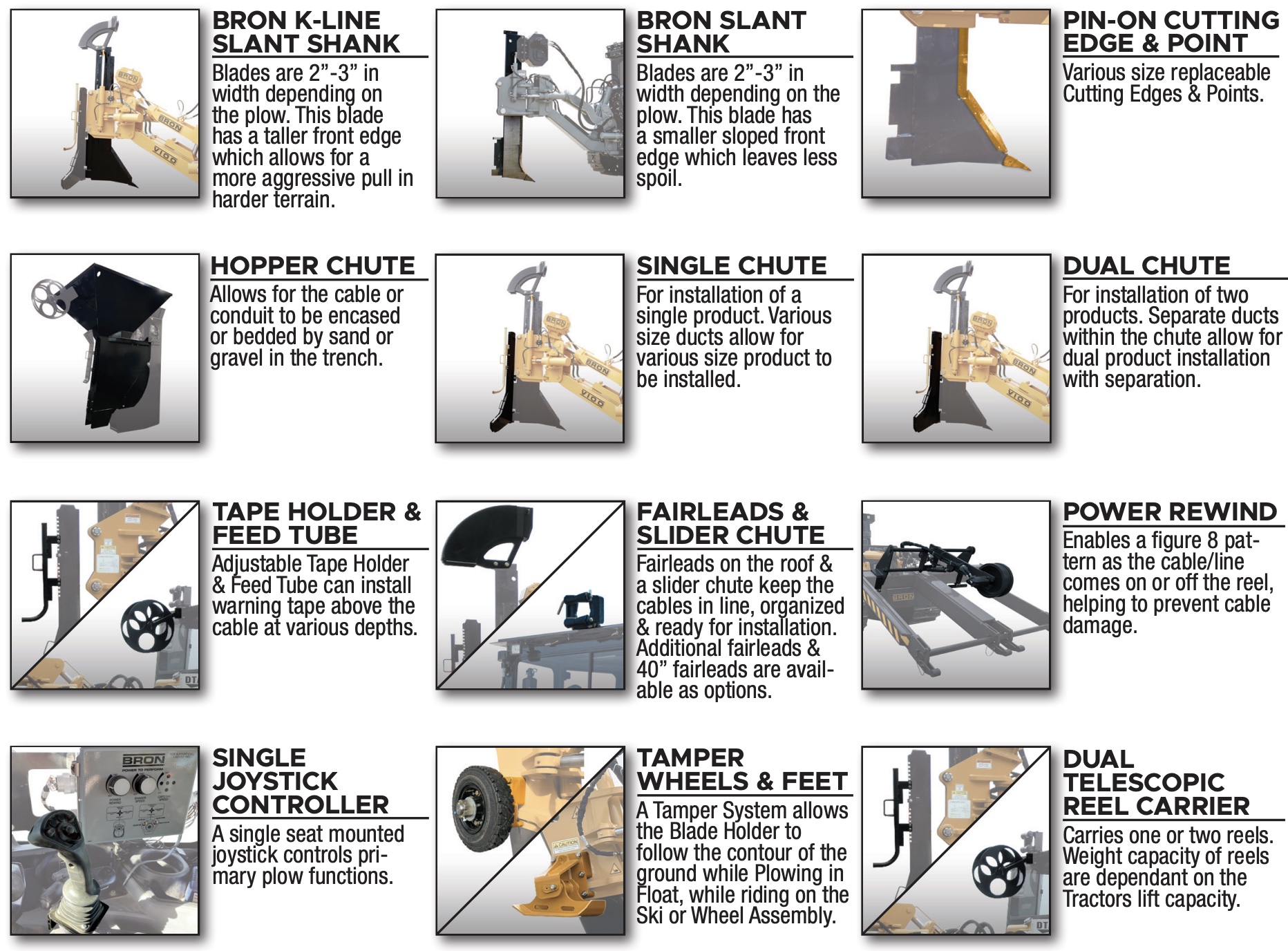

options
