v250
ADD-ON UTILITY PLOW

BRON V-250


9,700 lbs

66" DEPTH

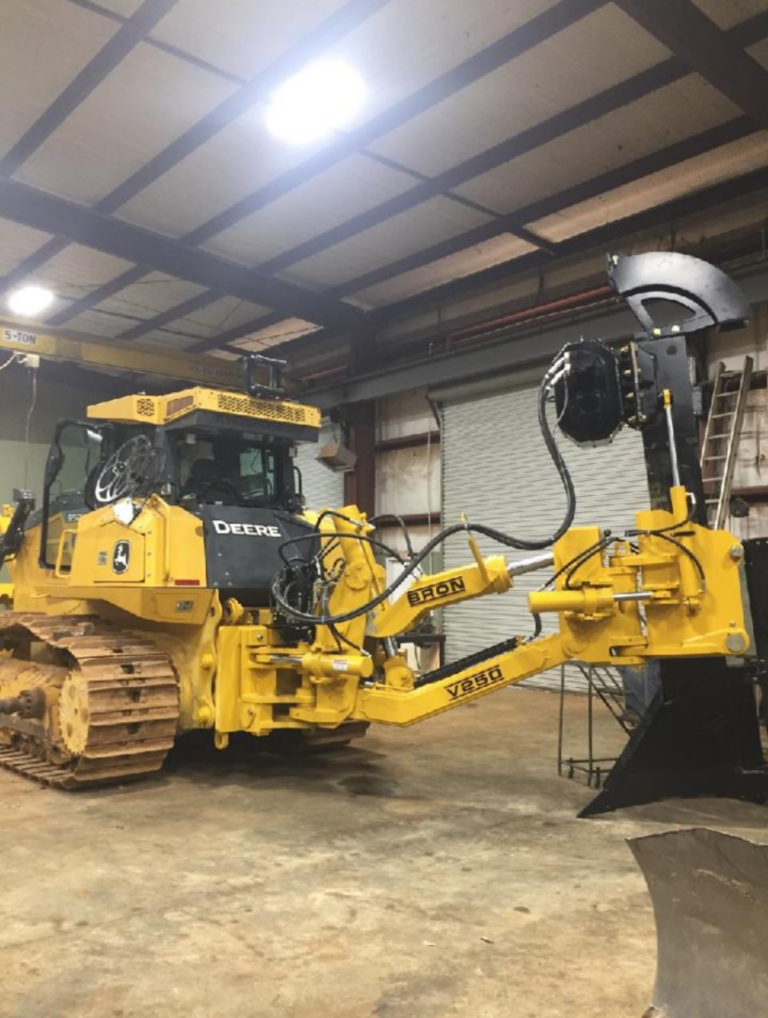

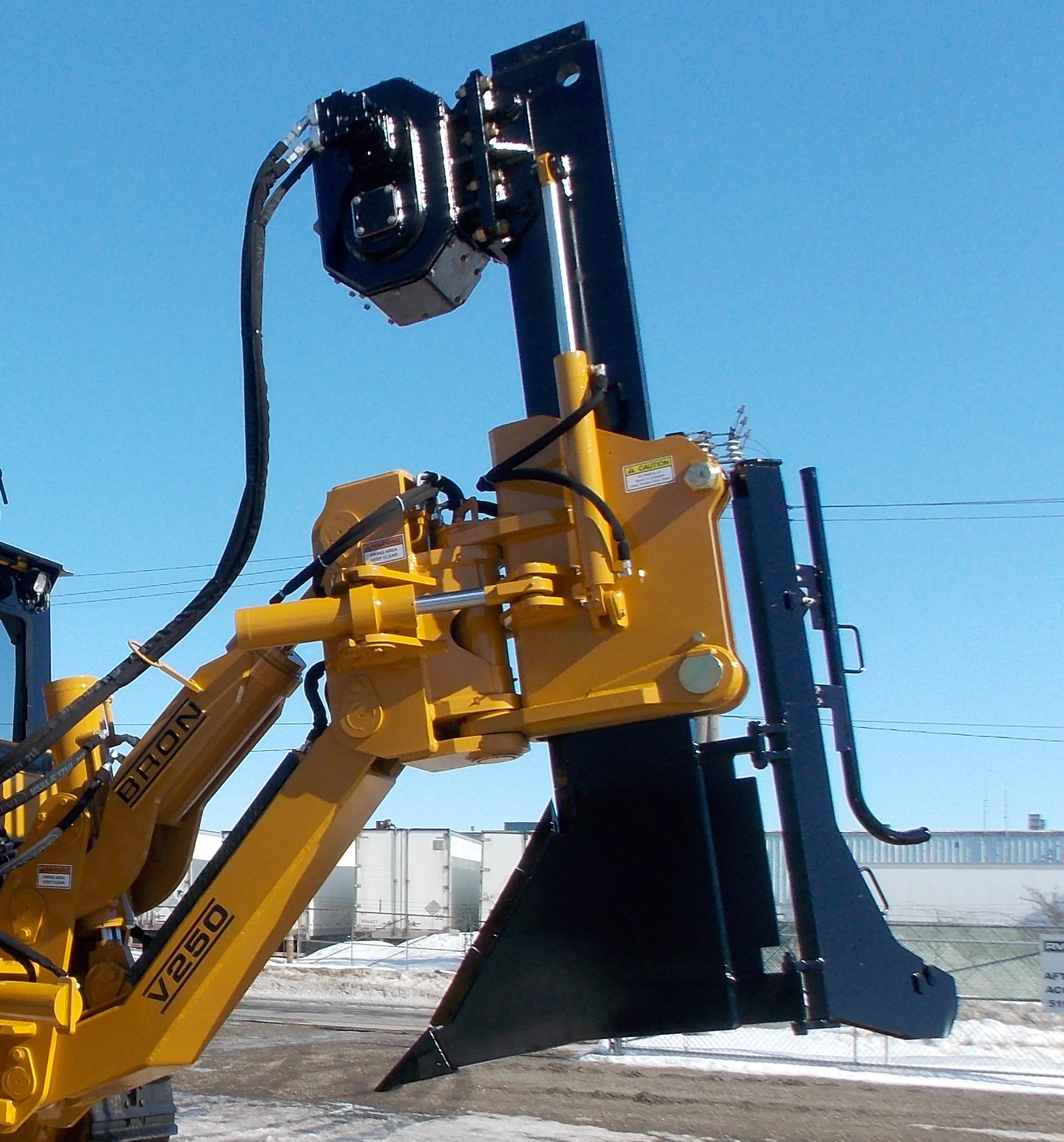

BRON V250 ADD-ON UTILITY PLOW

BRON Offsetting Add-On Vibratory Utility Plows are designed for the installation of fibre optics, copper cable, conduit and pipe at working depths up to 72". Vibratory Plows are ideal for installations in all conditions or when tractor power is limited due to challenging conditions.

Contact Us
Operating Weight 9,700 lbs (4,400 kg)
Length of Plow Assembly (without chute) 172" (4,369 mm)
Maximum Depth 66" (1,676 mm)
Offset Range Left & Right of Center 66" (1,676 mm)
Approximate Blade Clearance @ Transport Position 22" (559 mm) Fully Retracted
Recommended Tractor Horse Power 240 HP-290 HP (176 kW-213 kW)
Total Hydraulic Pump Flow Required 40 US gpm

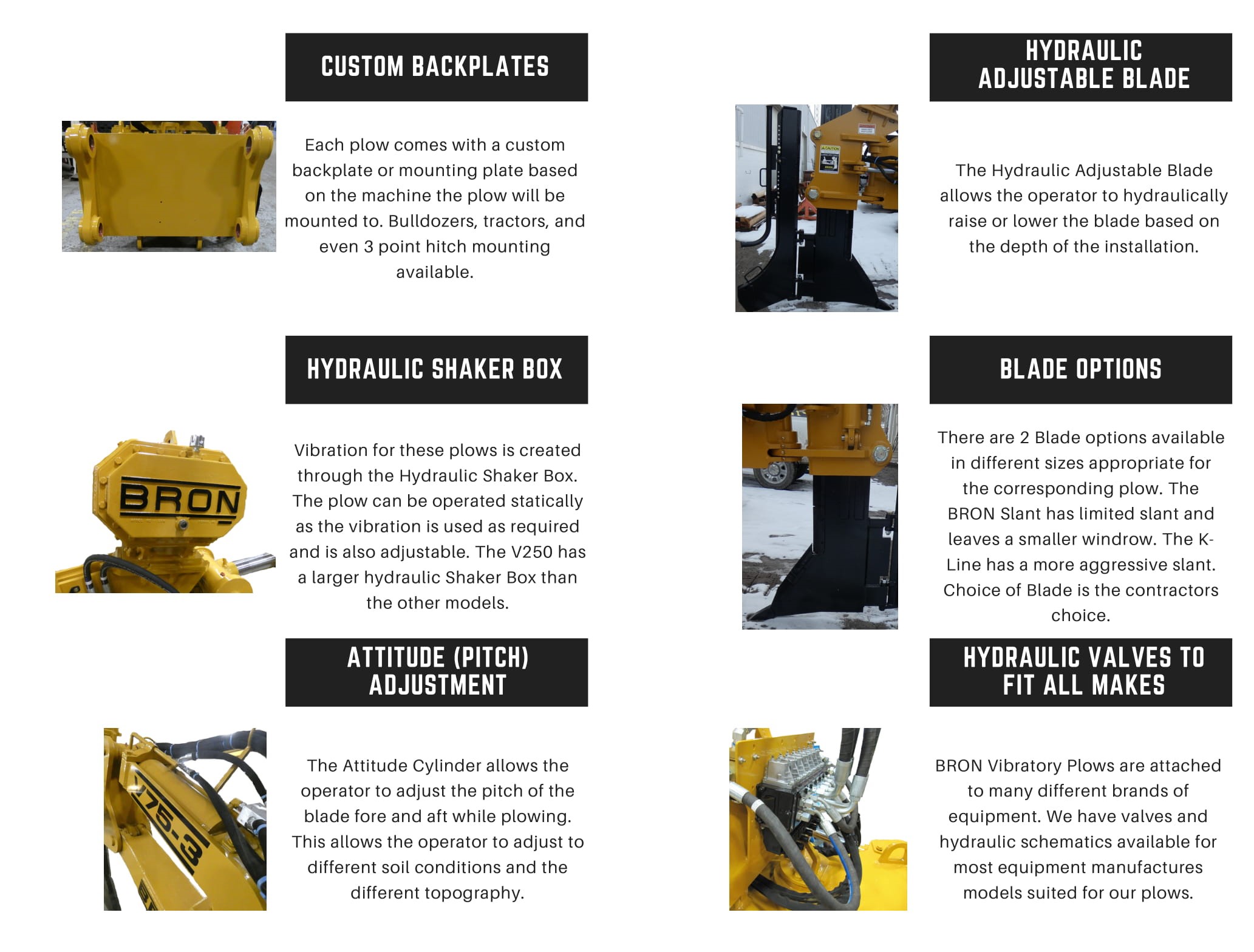

features

options

  • v250
  • V250
