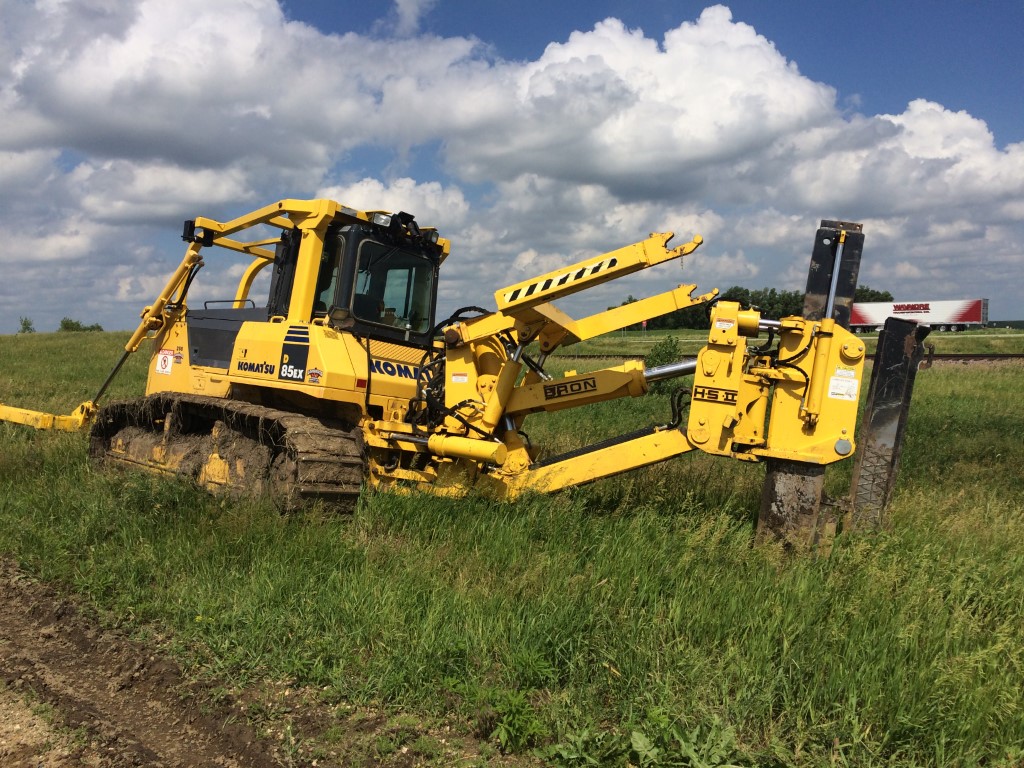

BRON Offsetting Static Add-On Plows are available for Power Units from 170hp-500hp. These robust fully offsetting plows are designed for the installation of fibre optics, copper cable and flexible pipe at working depths ranging from 42"(106cm) to 78"(198cm).
|Operating Weight||11,200 lbs (5,080 kg)|
|Length of Plow Assembly without Chute||183" (4,648 mm)|
|Maximum Depth||72" (1,828 mm)|
|Offset Range Left & Right of Centre||66" (1,676 mm)|
|Approximate Shank Clearance Transport Position||20" (508 mm) Blade fully retracted|
|Recommended Tractor Horsepower||280 HP-350 HP (205 kW-257 kW)|
