HS-1
ADD-ON STATIC PLOW

BRON HS-I


8,700 lbs

60" DEPTH



BRON HS-I

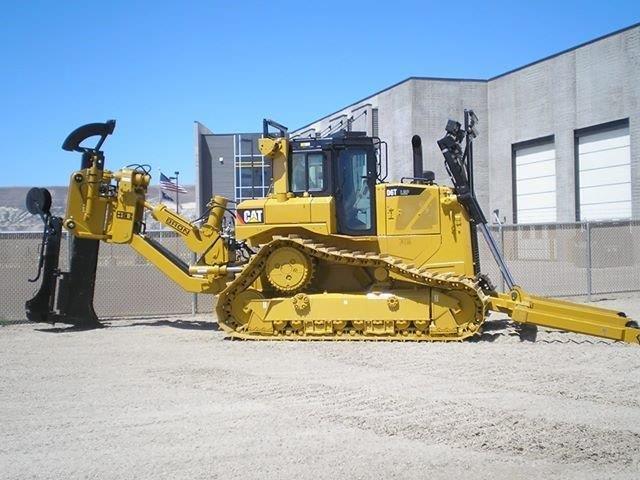

BRON Offsetting Static Add-On Plows are available for Power Units from 170hp-500hp. These robust fully offsetting plows are designed for the installation of fibre optics, copper cable and flexible pipe at working depths ranging from 42"(106cm) to 78"(198cm).

Contact Us
Operating Weight 8,700 lbs (3,946 kg)
Length of Plow Assembly without Chute 172" (4,369 mm)
Maximum Depth 60" (1,524 mm)
Offset Range Left & Right of Centre 66" (1,676 mm)
Approximate Shank Clearance Transport Position 20" (508 mm) Blade fully retracted
Recommended Tractor Horsepower 170 HP-250 HP (125 kW-183 kW)

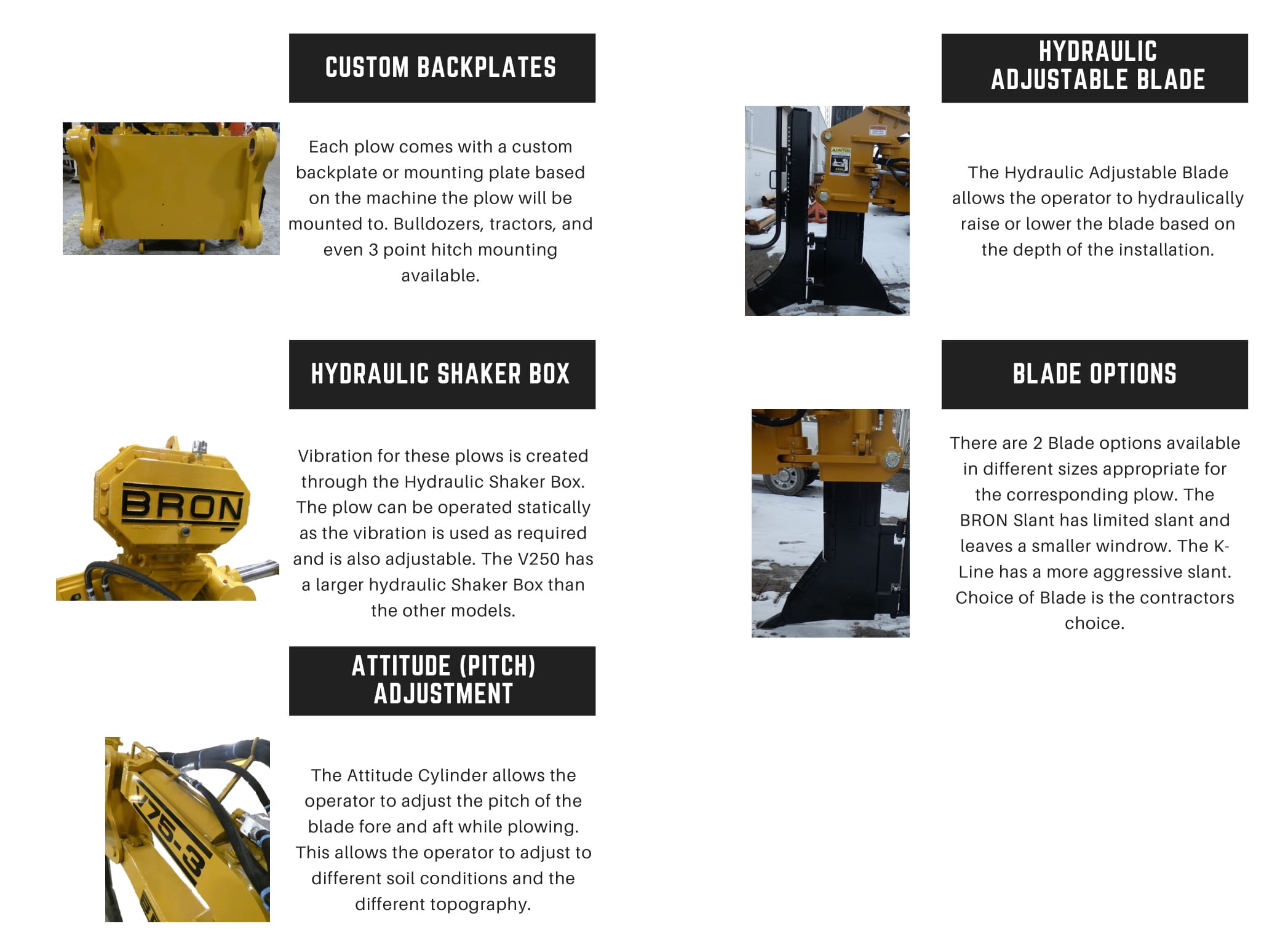

features

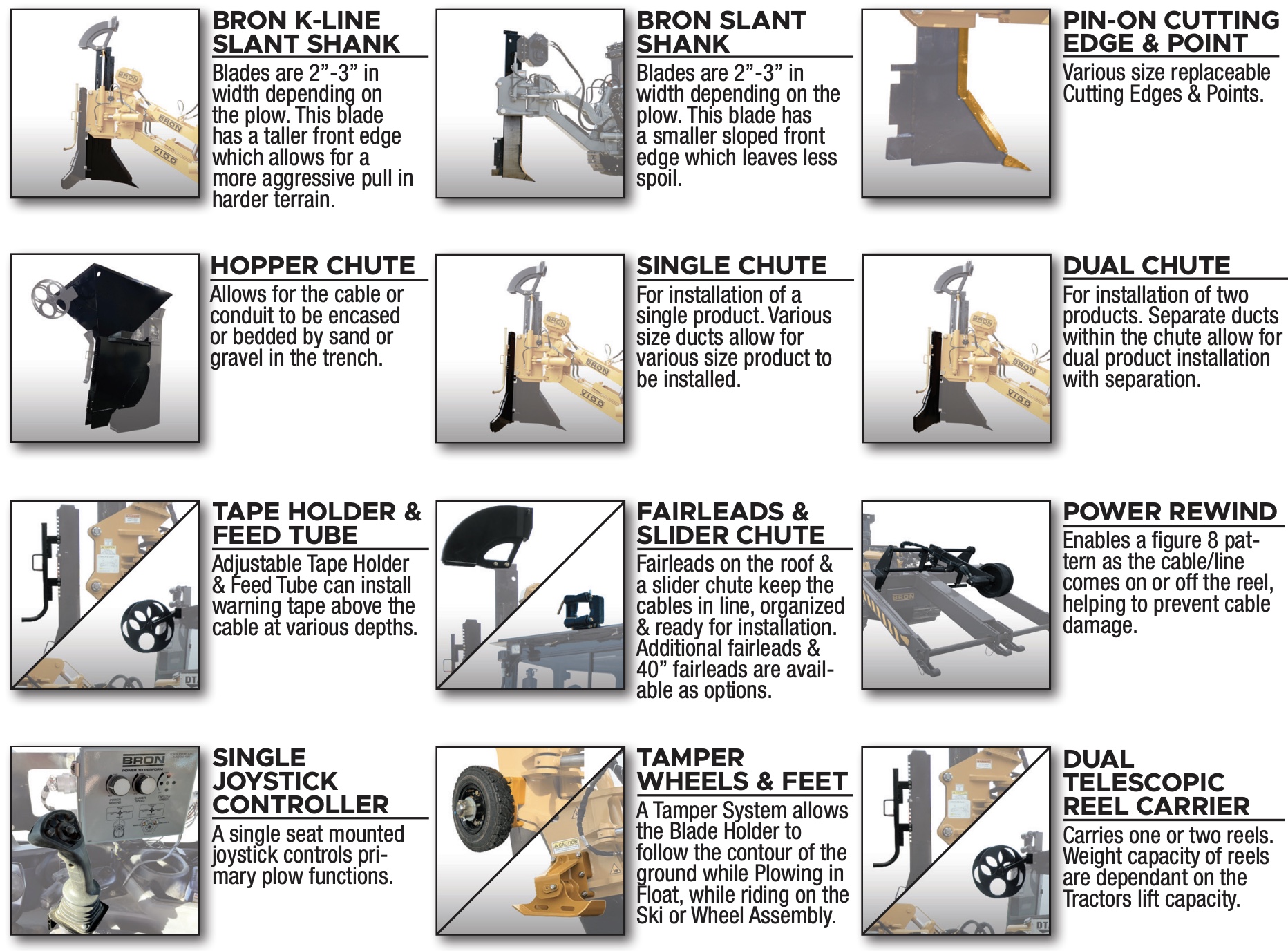

options
